Auto Shot Blasting Machines are the most fast and economical way of blasting steel than air-blast system. In addition they can achieve a high degree and uniformity of quality. For these reasons centrifugal blast cleaning machines have become virtually essential in the steel fabricators shop.
Auto Shot Blasting machine consists of Blasting Cabinet, Vestibules Recovery Hopper, Screw Conveyors, Bucket Elevator, Air Wash System, Dust Collector and Roller Conveyor.
We manufactures these machines as per the customer’s specification. The design of machine depends upon the speed of blasting and the size of steel to be blasted. The machine can be either 4 wheel, 6 wheel, 8 wheel, 10 Wheel etc.
This machine works on a principle of centrifugal force created by the wheel rotating at 3000 RPM. A mixture of steel shot and steel grit is fed to the center of the wheel and it is dispersed through the periphery of the wheel. The used grit is been collected at the bottom hopper of the machine and is then conveyed to the bucket elevator through the screw conveyor. The steel grit is lifted to the Air-wash system with the help of bucket elevator where the grit is cleaned with the help of air suction system. The cleaned grit is again fed to the wheels. The blasting material is fed through the roller conveyor.

Dust collection systems
Abrasive recycling machine.
Under floor recovery system
We manufacture custom built blast booth which consists of Dust collector,
Under floor recovery system, abrasive recycling machine.
A detailed description of all these items are mentioned below for better understanding.

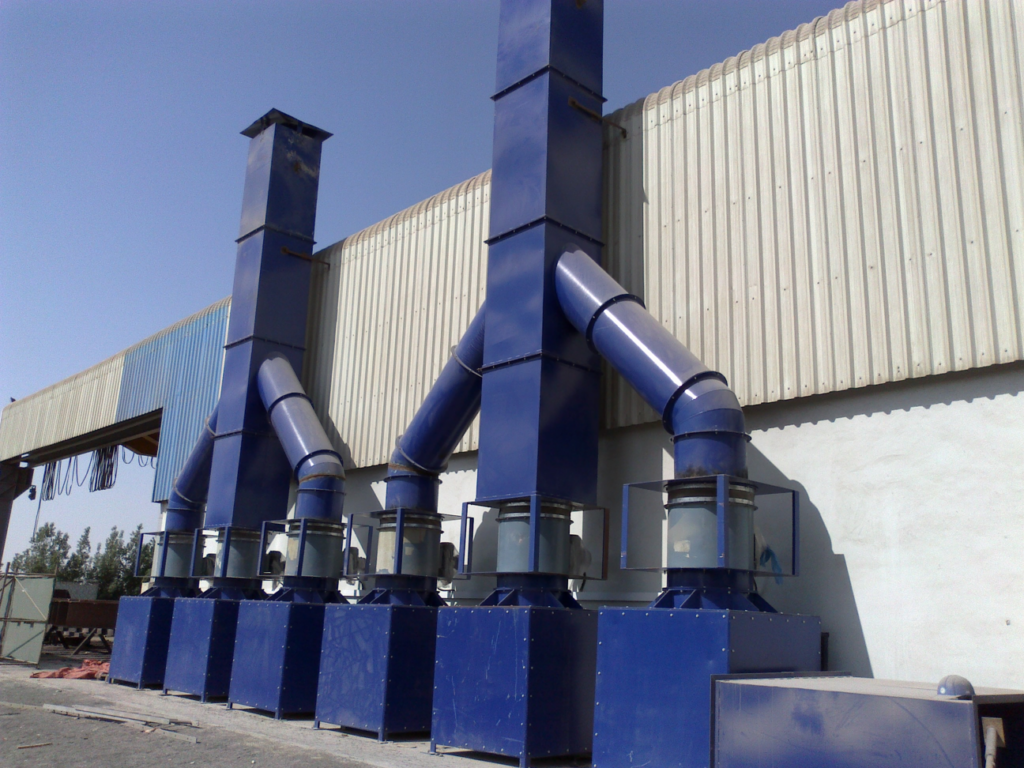

Dust Collection System

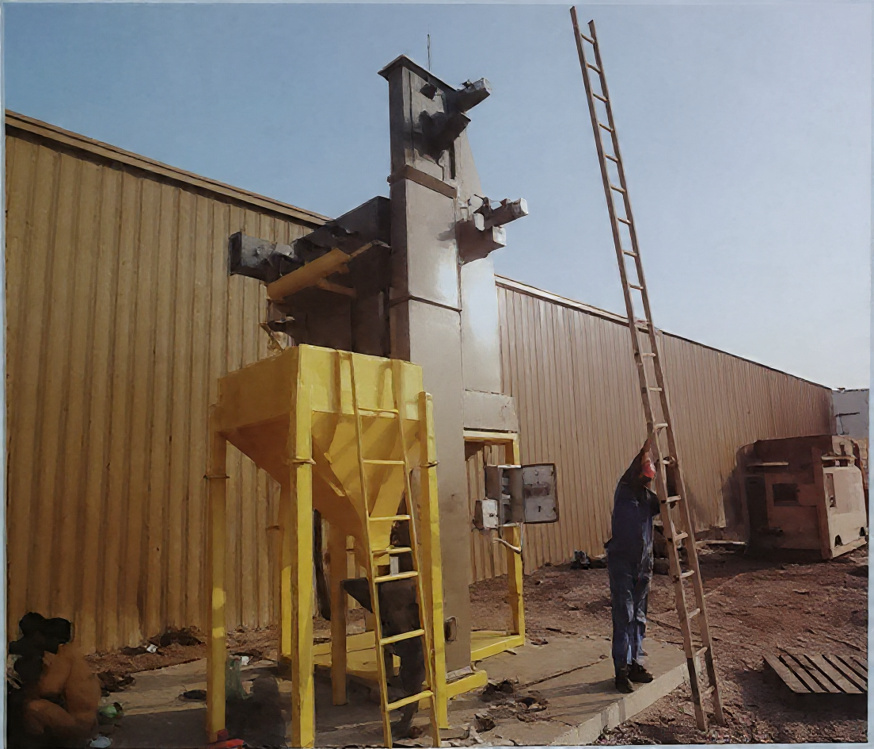

Bulk Recycler is a fully assembled unit with central lifting point for easy transportation and setting up on site. Bulk recycler is designed to clean used garnet. All trash such as cigarette butts, broken glass, paint flakes, welding rods, stones etc. are removed from the garnet. Inbuilt reverse pulse jet type dust collecting system. Bulk Recycler is a low maintenance and easy to operate system with adjustable controls for material flow and air-wash cleaning. Typical throughput capacity is up to 6 metric tonnes per hour. Bulk Recycler gives an ability to use your Garnet Abrasive over and over again for maximum cost savings. Recycling allows for greatly reduced abrasive purchases and reduced transport handling and disposal costs

Key Features:
Precision Orbital Welding: Delivers high-quality circumferential seam welds for large
tanks and pipelines.
Versatile Welding Modes: Easily handles corner,
horizontal, and overhead welding by adjusting t
he gun’s position.
Modular & Portable Design: Quick installation and
disassembly with magnetic adhesion to the
workpiece for stability.
Advanced Swing Control: Customizable swing
parameters (mode, amplitude, speed, dwell time)
for optimal weld bead formation.
Technical Specifications:
Power: AC220V or DC24V (optional lithium battery)
Dimensions/Weight: 400x330x320MM, 13KG
(including swinging device)
Speed Range: 0-999mm/min walking speed, 0-
40 circles/minute swing speed Typical Applications: Circumferential seam welding on large tanks
